Brand - McMASTER-CARR
Item Number - 6721K101 McMASTER-CARR

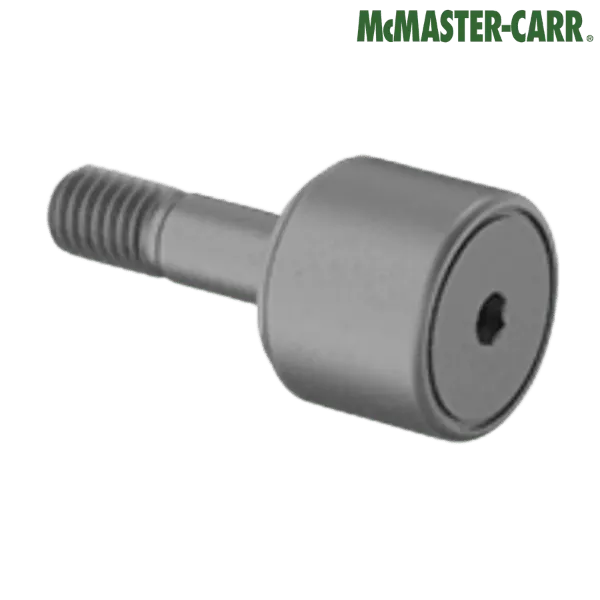

Category - Maintenance Free Threaded Track Roller (Steel Flat Rollers without Seal)

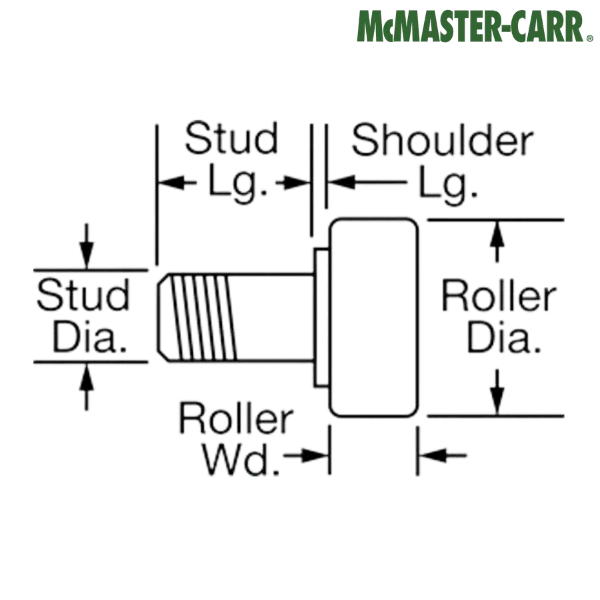

Diameter of Roller (inch) - 0.6875
Diameter of Roller (mm) - 17.4625
Width of Diameter (inch) - 0.4375
Width of Diameter (mm) - 11.1125
Diameter of Stud (inch) - 0.25
Diameter of Stud (mm) - 6.35
Length of Stud (inch) - 0.75
Length of Stud (mm) - 19.05
Thread Diameter (inch) - 0.25
Thread Diameter (mm) - 6.35
Number of Threads per inch - 28
Thread Length (inch) - 0.3125
Thread Length (mm) - 7.9375
Shoulder Diameter (inch) - 0.46875
Shoulder Diameter (mm) - 11.90625
Shoulder Length (inch) - 0.03125
Maximuum Speed (rpm) - 1200
Radial Dynamic Load Capacity (lbs) - 25
Maximum Temperature (°F) - 250°
Bearing Type - Plain
Includes - Mounting Hardware

** Images are for representation purposes only
