Brand - McMASTER-CARR
Item Number - 6717K27 McMASTER-CARR

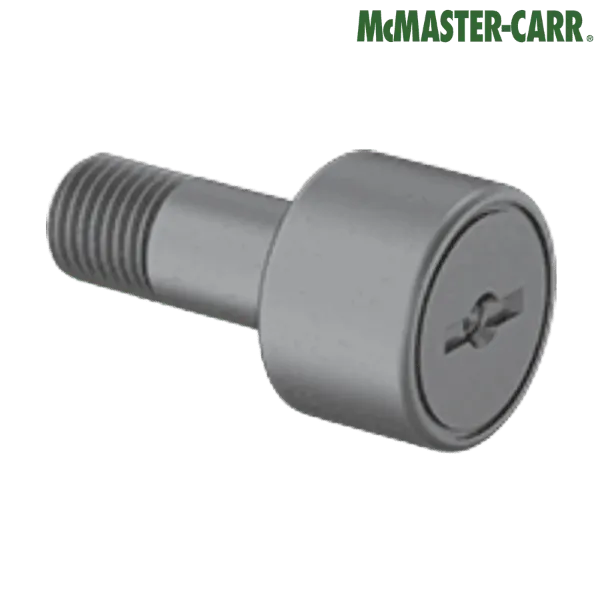

Category - Extreme Temperature Threaded Track Rollers(Steel Flat Roller with Seal)

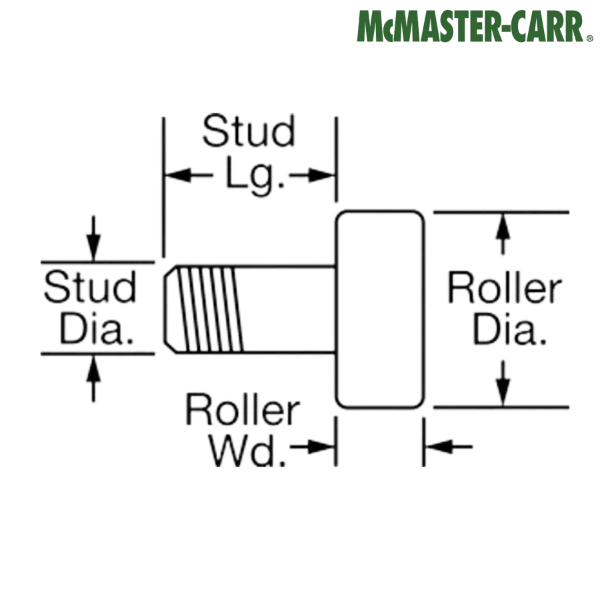

Roller Diameter (inch) - 2.5
Roller Diameter (mm) - 63.5
Roller Width (inch) - 1.5
Roller Width (mm) - 38.1
Stud Diameter (inch) - 1
Stud Diameter (mm) - 25.4
Stud Length (inch) - 2.25
Stud Length (mm) - 57.15
Thread Size - 1"-14
Thread Diameter (inch) - 1
Thread Diameter (mm) - 25.4
Thread Legth (inch) - 1.125
Thread Length (mm) - 28.575
Maximum Speed (rpm) - 100
Dynamic Radial Load Capacity (lbs) - 170
Temperature Range (°F) - -450° to 750°
Inside Bearing Type - Plain

** Images are for representation purposes only
