Brand - McMASTER-CARR
Item Number - 4227N15 McMASTER-CARR

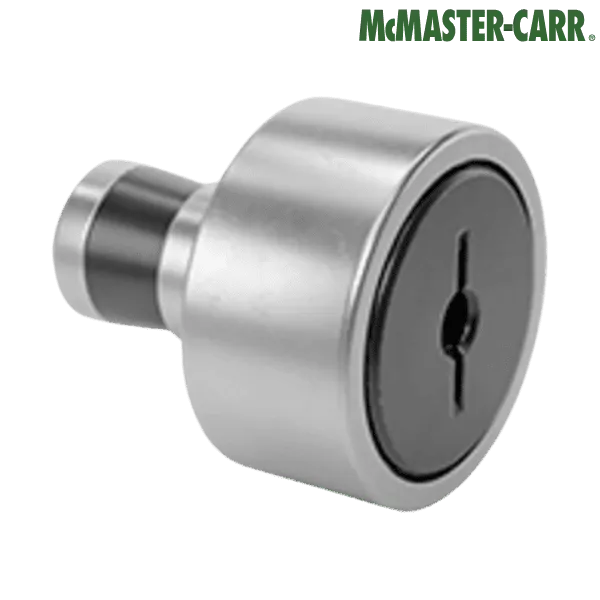

Category - Tapered Stud Track Rollers (Steel Flat Rollers with Seal)
Roller Diameter (mm) - 30
Roller Width (mm) - 14
Stud Diameter (mm) - 12
Stud Length (mm) - 20
Shoulder Diameter (mm) - 24
Shoulder Length (mm) - 0.6
Maximum Speed (rpm) - 9800
Radial Static Load Capacity (lbs) - 2200
Radial Dynamic Load Capacity (lbs) - 1700
Maximum Temperature (°F) - 175°
Inside Bearing Type - Needle Roller Bearing

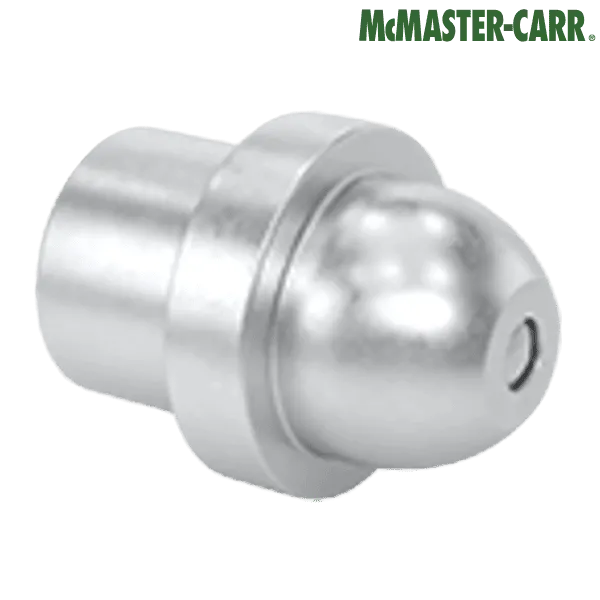

Grease Fittings - 4227N19

**Images are for representation purposes only
